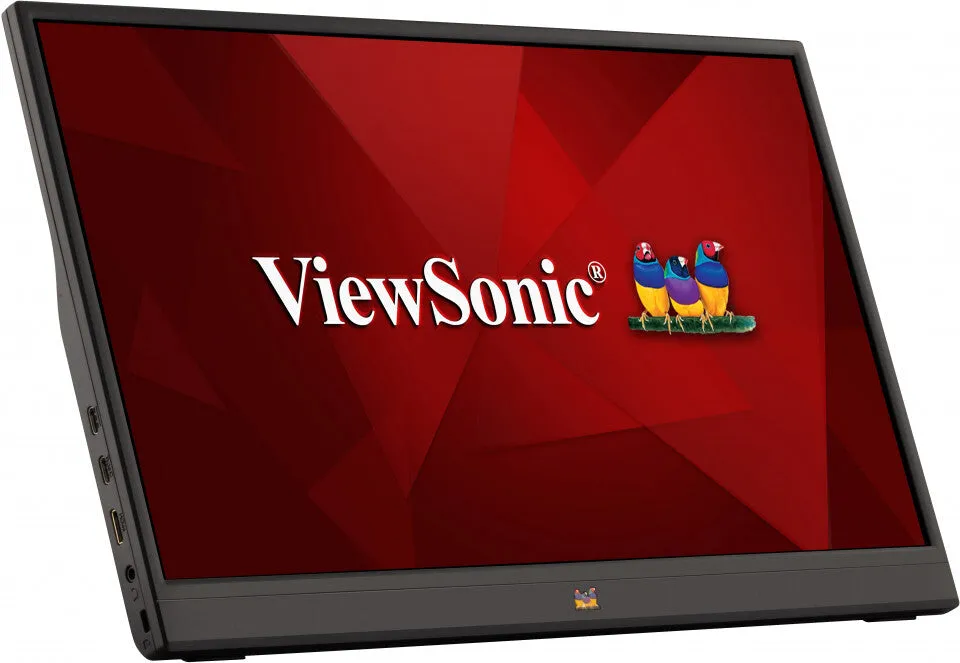

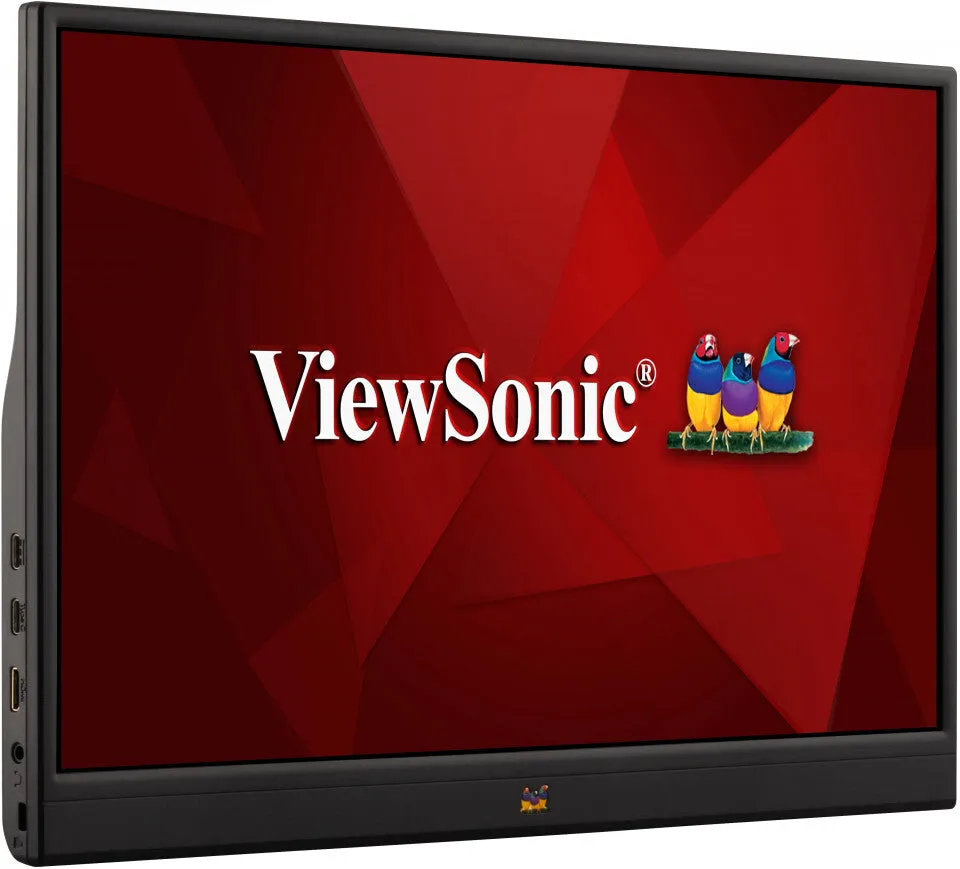

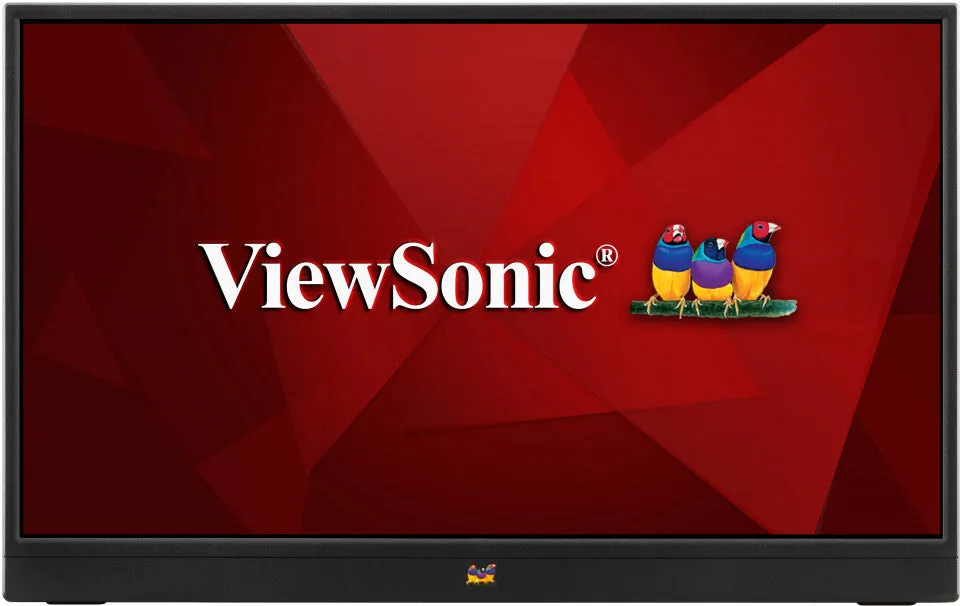

ViewSonic VA1655 16" Full HD Monitor - 60Hz, 7ms, IPS, Speakers, Black
Viewsonic VA1655. Display diagonal: 40.6 cm (16"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 7 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). Product colour: Black

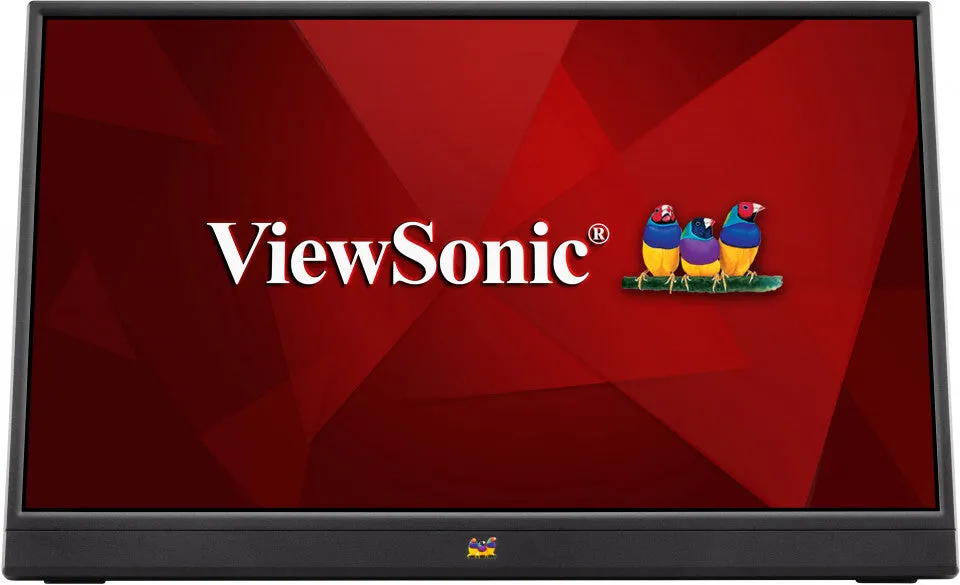

The ViewSonic VA1655 is a portable 16 Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable stand and pivot-able display will support your working angles.
Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Anywhere with Laptops, Tablets, and Phones
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile devices multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.
*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

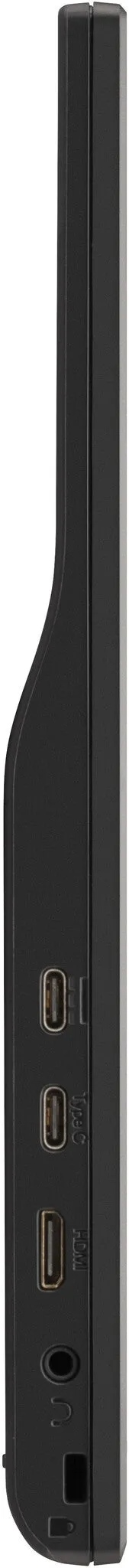

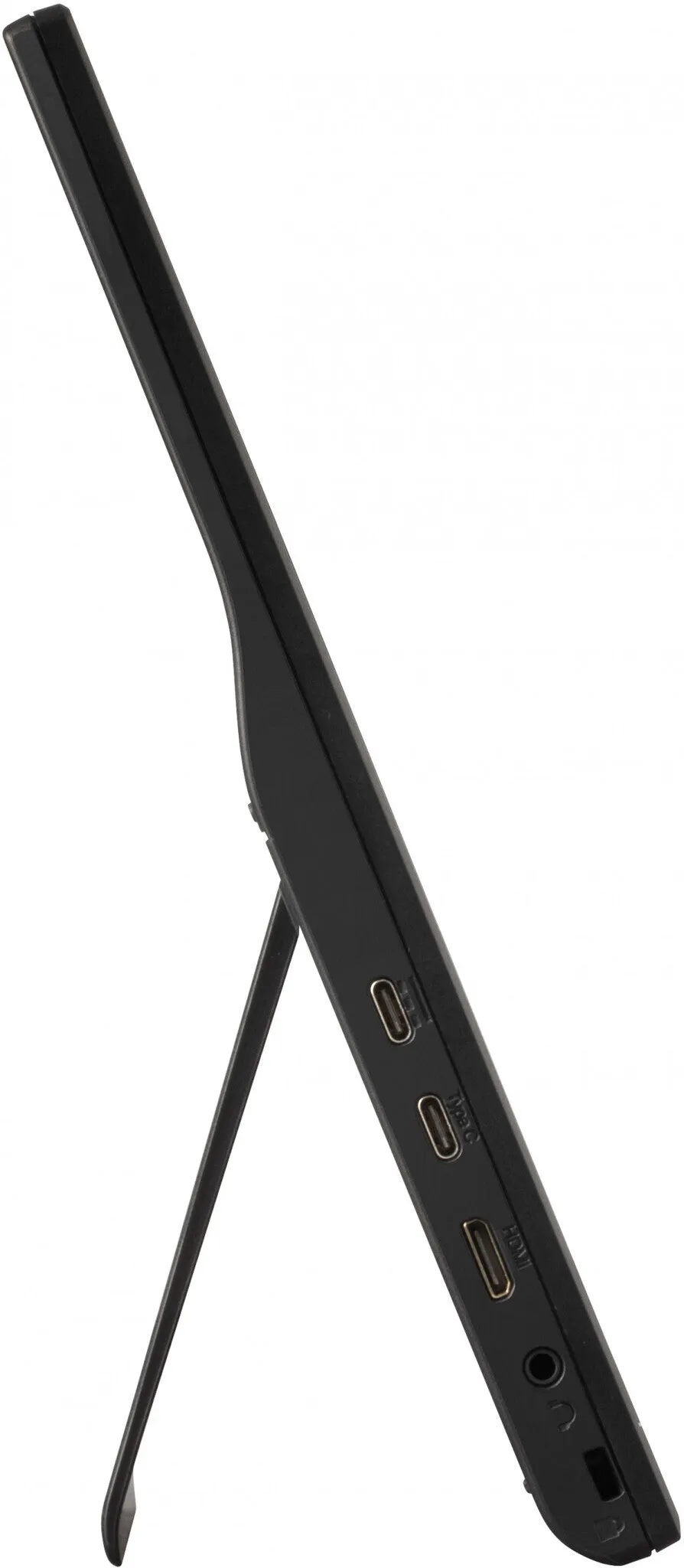

Flexible Setup with USB Type C and mini HDMI
Portable Size for Work & Fun
Larger, 16 display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

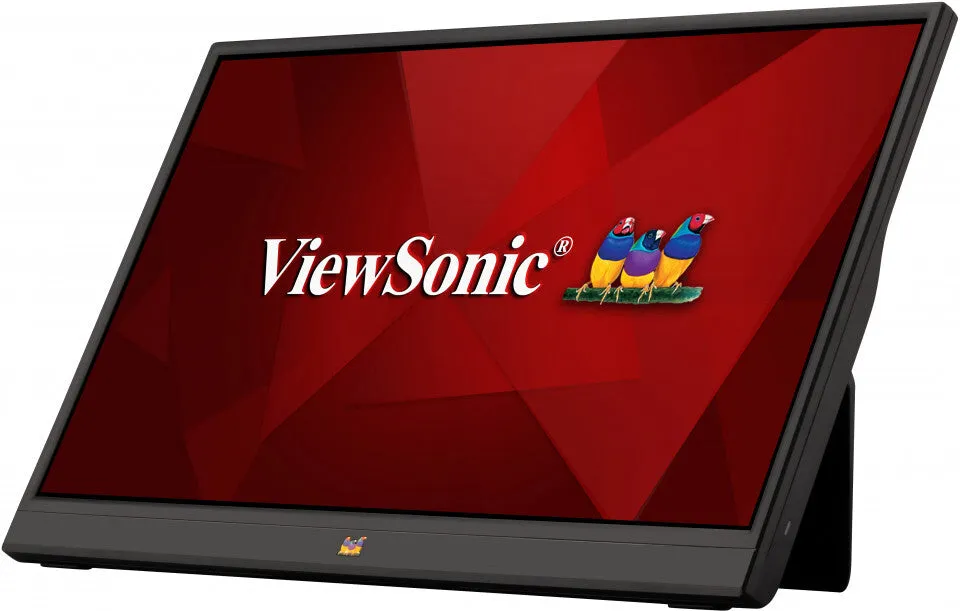

Working in Your Preferred Angles

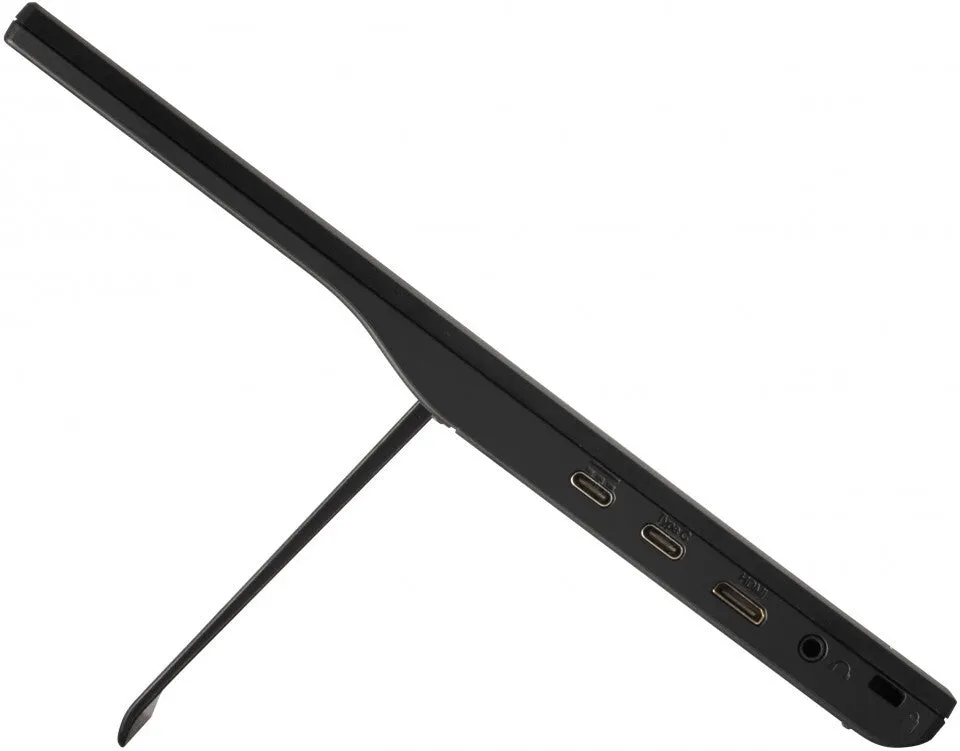

View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display

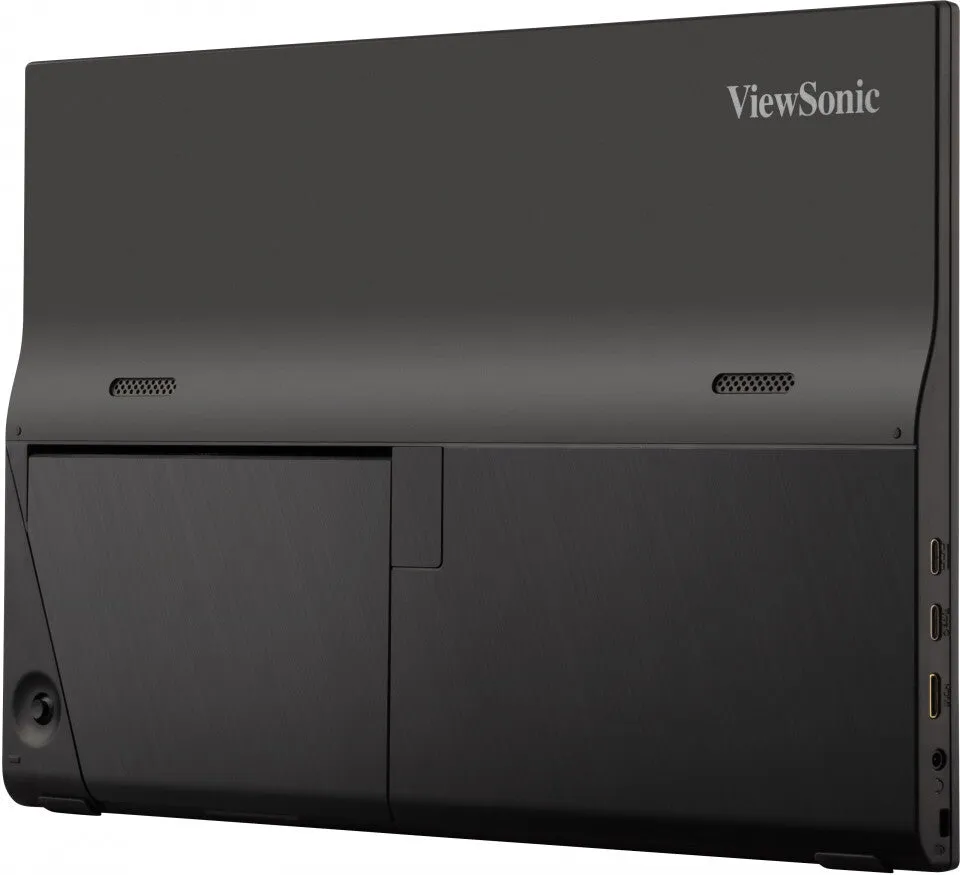

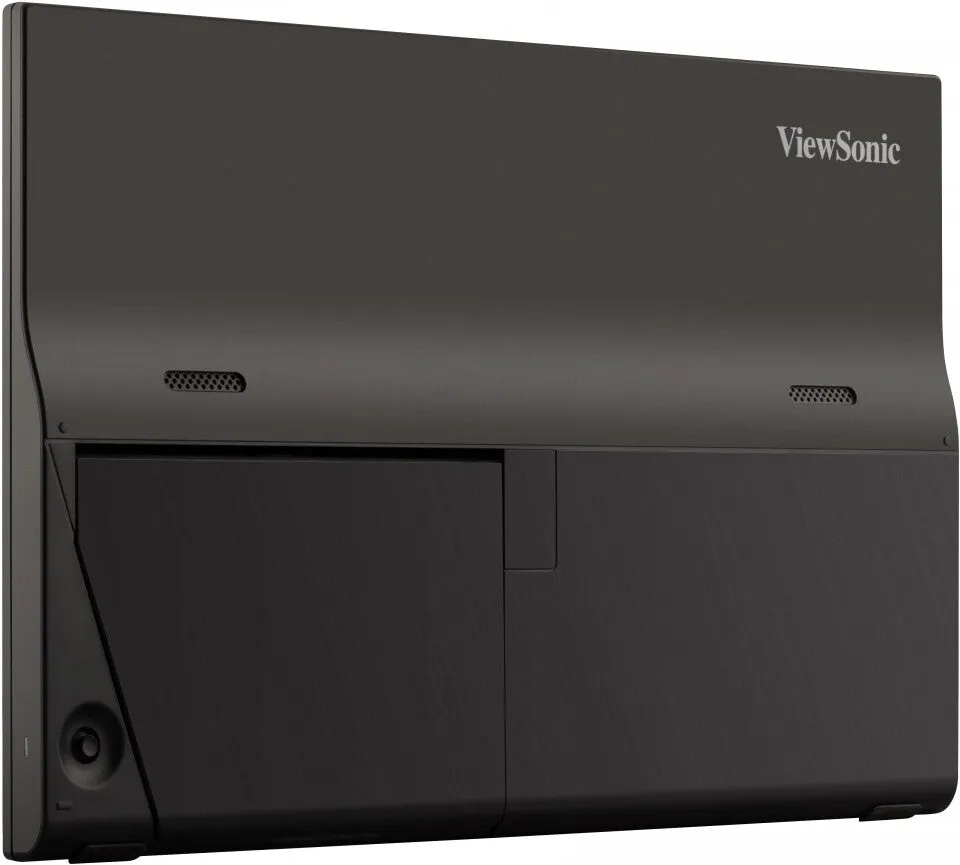

One-piece Design

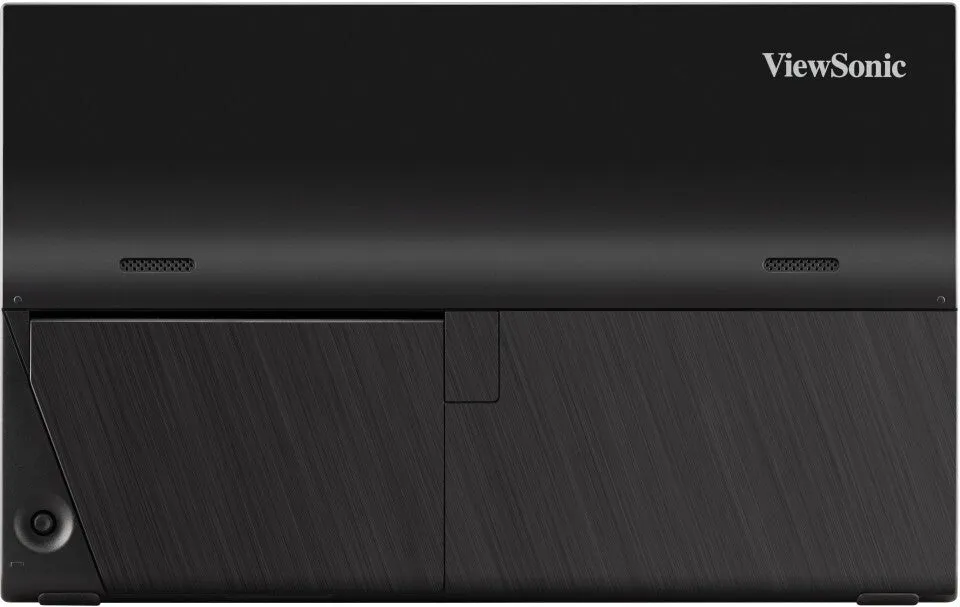

With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.

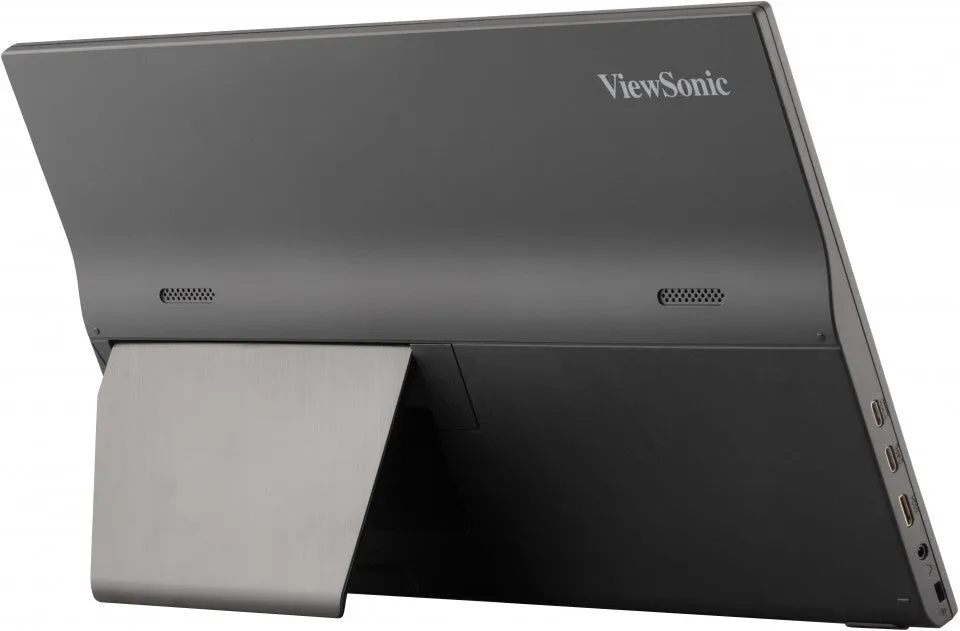

Endurable hinge & Foldable stand
| Display |
|---|
| NTSC coverage (typical) | 45% |
| sRGB coverage (typical) | 64% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 15 - 82 kHz |
| Pixel pitch | 0.179 x 0.179 mm |
| Display number of colours | 16.2 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 800:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Display technology | LED |
| HD type | Full HD |
| Response time | 7 ms |
| Display brightness (typical) | 250 cd/m |
| Display brightness | 250 cd/m |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 40.6 cm (16") |
| Performance |
|---|
| Compatible operating systems | Windows 10 certifiedmacOS tested |
| Multimedia |
|---|
| RMS rated power | 0.8 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces |
|---|
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | 1 x 3.5 mm |
| Mini HDMI ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB upstream port type | USB Type-C |
| Ergonomics |
|---|
| Tilt adjustment | Yes |
| Tilt angle range | 30 - 53 |
| Pivot | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power |
|---|
| Energy efficiency scale | A to G |
| Power supply type | AC |
| Power consumption (max) | 7.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 7 W |
| Energy consumption (SDR) per 1000 hours | 7 kWh |
| Energy efficiency class (SDR) | C |
| Operational conditions |
|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 782845 |
| Weight & dimensions |
|---|
| Weight (without stand) | 700 g |
| Height (without stand) | 227 mm |
| Depth (without stand) | 17 mm |
| Width (without stand) | 359 mm |
| Weight (with stand) | 700 g |
| Height (with stand) | 277 mm |
| Depth (with stand) | 17 mm |
| Width (with stand) | 359 mm |
| Packaging data |
|---|
| Package height | 384 mm |
| Package depth | 72 mm |
| Package width | 430 mm |
| Cables included | USB Type-C |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | REACH, RoHS |
| Other features |
|---|
| Touchscreen | No |
