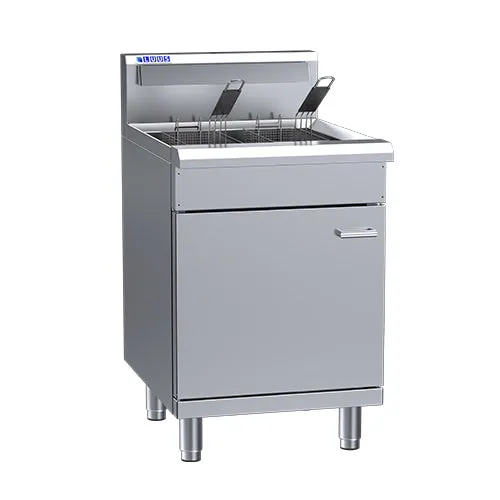

LUUS Professional 3 Basket Single V-Pan Fryer 600mm - FV-60
FV series fryers feature an easy to clean stainless steel V-pan tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.
24month Platinum Warranty
V-Pan Fryer
120mj jet burner with pilot, FFD and piezo ignition
Fenwal thermostat valve with /- 1 C tolerance
Thermostat temperature range 150 - 200 C
High temperature cut-out safety mechanism
304 grade 1.5mm stainless steel tank
25 litre tank capacity
Includes 3 stainless steel fryer baskets
0.9mm stainless steel perforated fish/base plate
Tank drainage valve at bottom front of unit
Overall Construction
Heavy duty construction
Constructed 0.9mm 304 stainless steel door
High density Fiberfrax Durablanket insulation around tank
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Includes stainless steel legs
Modular Professional series design
Dimensions
600mm x 800mm x 1100mm H
Working height 900mm
Weight 83kg
Packed dimensions 640mm x 860mm x 1260mm H
Packed weight 103kg
Connections
Gas 3/4 BSP male
Gas 225mm from right, 50mm from rear, 210mm from floor
In-built Natural gas regulator
Drain 1 1/4 BSP male
Drain 300mm from left, 70mm from front, 385mm floor
Cleaning & Servicing
Easy access to all parts & components from front
V-pan easy-to-clean design
Rear basket support bar
Removable baskets and inserts
