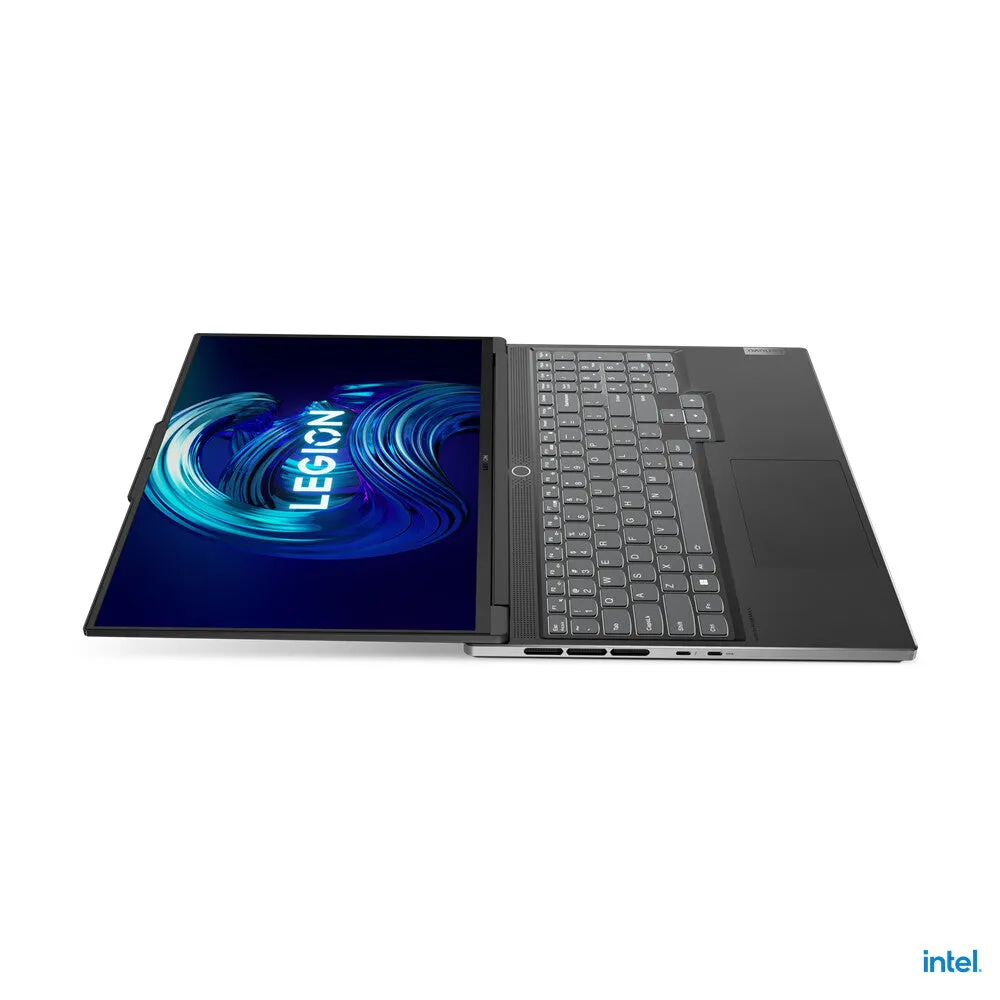

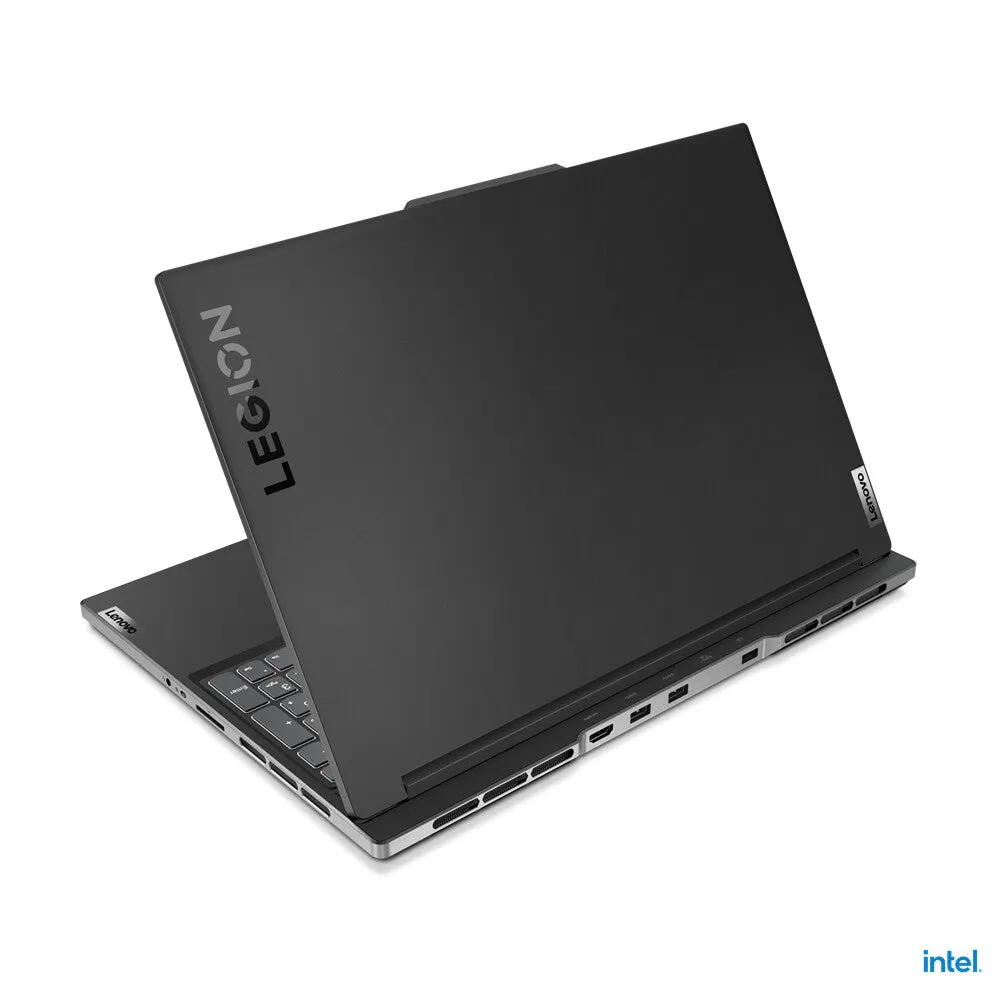

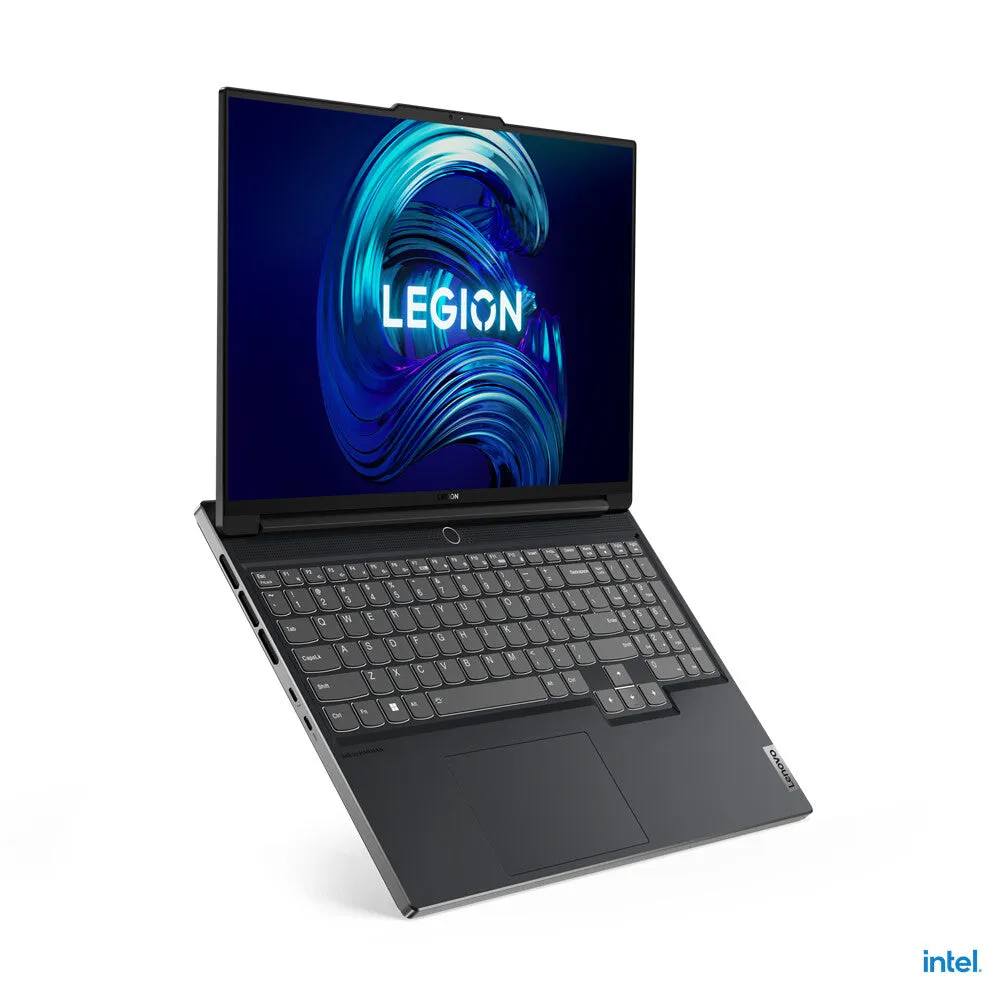

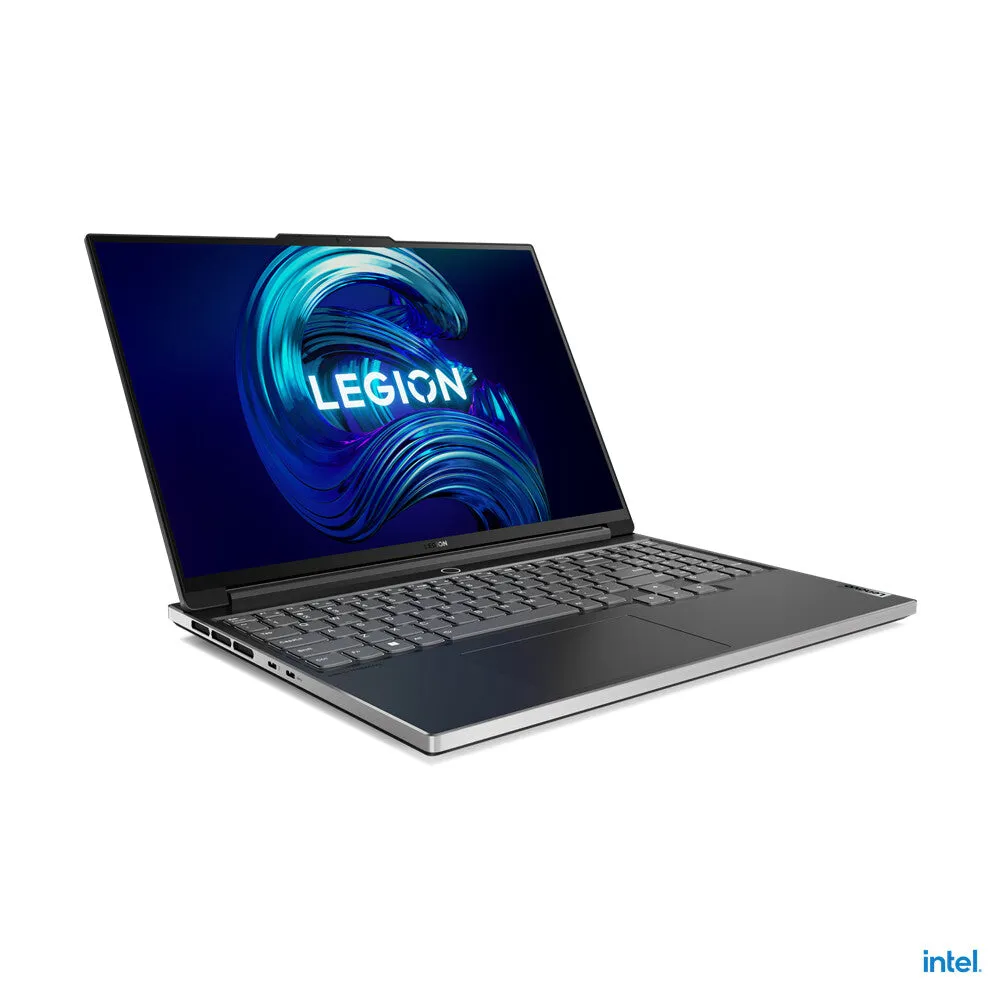

Lenovo Legion S7 G7 16" Laptop - Intel Core i7-12700H, 16GB RAM, 512GB SSD, NVIDIA GeForce RTX 3060, WQXGA, Windows 11 Home, Grey
Lenovo Legion S7 16IAH7. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-12700H. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA GeForce RTX 3060. Operating system installed: Windows 11 Home. Product colour: Grey
The world's most mobile 16 laptop
- Slim build with tons of power from 12th Gen Intel Core processors
- See every detail with NVIDIA GeForce RTX 30 Series GPU's
- Push the limits of performance with up to 24GB of DDR5 RAM
- Enjoy top-tier visuals on a 16 WXQGA display with up to a variable refresh rate or mini-LED option
- Stay calm, cool, and ready to strike with Coldfront 4.0
1-year, Courier or Carry-in
| Design |
|---|
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Onyx Grey |
| Product colour | Grey |
| Product type | Laptop |
| Display |
|---|
| High Dynamic Range (HDR) technology | Dolby Vision, DisplayHDR 400 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 165 Hz |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Display brightness | 500 cd/m |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor |
|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Efficient-core boost frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-12700H |
| Processor generation | 12th gen Intel Core i7 |
| Processor family | Intel Core i7 |
| Processor manufacturer | Intel |
| Memory |
|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 24 GB |
| Memory slots | 1x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | On-board SO-DIMM |
| Memory clock speed | 4800 MHz |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage |
|---|
| Compatible memory cards | SD, SDHC, SDXC, MMC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics |
|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio |
|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Audio chip | Realtek ALC3306 |
| Camera |
|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network |
|---|
| WWAN | Not installed |
| Bluetooth version | 5.2 |
| Ethernet LAN | No |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Bluetooth | Yes |
| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard |
|---|
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software |
|---|
| Trial software | Office |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Processor special features |
|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| CPU configuration (max) | 1 |
| Battery |
|---|
| Fast charging | Yes |
| Battery life (max) | 8.6 h |
| Battery capacity (Watt-hours) | 99.99 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power |
|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 230 W |
| Security |
|---|
| Password protection type | Power on, Supervisor, HDD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Operational conditions |
|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 C |
| Operating temperature (T-T) | 5 - 35 C |
| Certificates |
|---|
| Certification | ErP Lot 3 |
| Compliance certificates | RoHS |
| Weight & dimensions |
|---|
| Height | 16.9 mm |
| Depth | 260 mm |
| Width | 357.7 mm |
| Weight | 2.23 kg |
| General |
|---|
| Product family | Legion |
