Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable and unencumbered upper fret access, the Dinky alder body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The baked neck has a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, Luminlay side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Designed for high-speed playing, its 12-16 compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech TUSQ XL nut.
Features
- Alder Dinky body
- Bolt-on caramelized maple neck with graphite reinforcement
- 12-16 compound radius ebony fingerboard with 24 jumbo frets and pearloid dot inlays
- Graph Tech TUSQ XL nut
- Heel-mount truss rod adjustment wheel

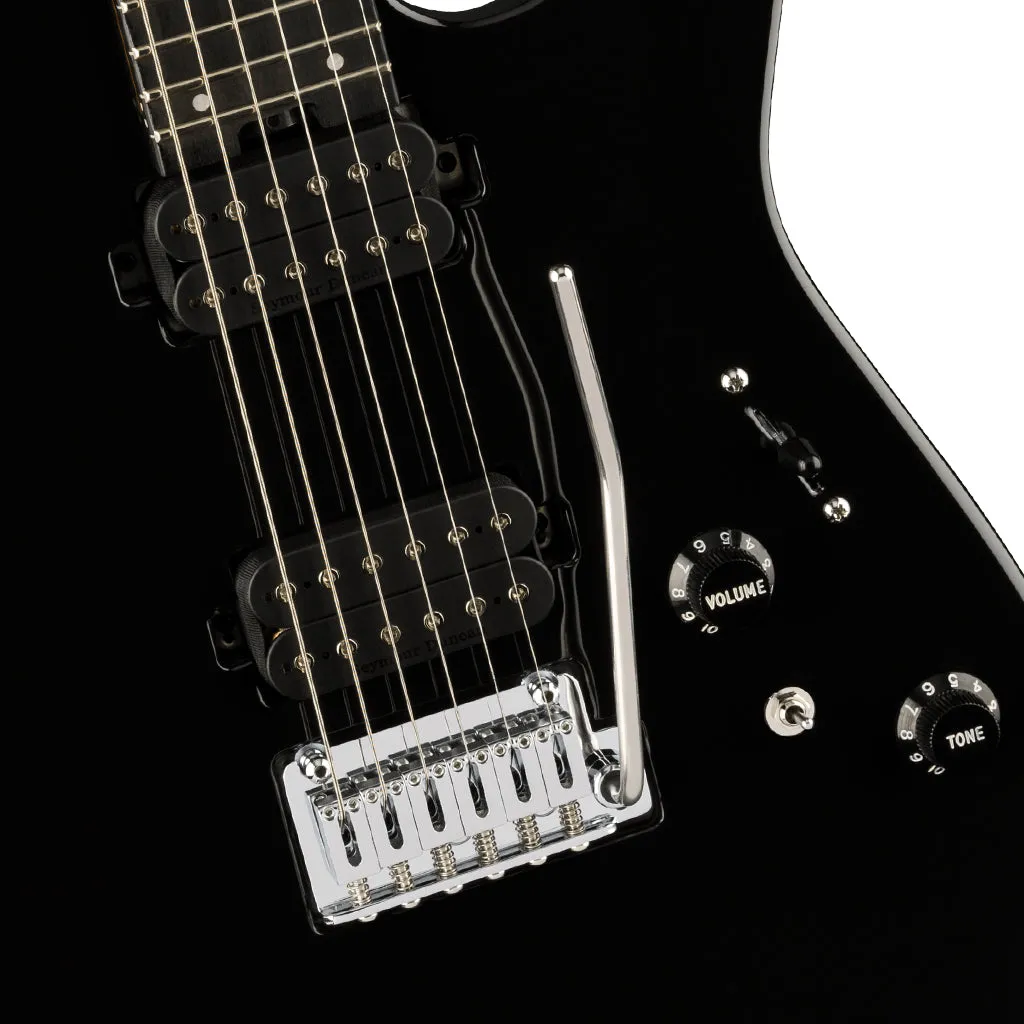

- Direct mount Seymour Duncan Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup
- Five-way blade switch, Stratocaster-style skirt knobs for no-load tone control and volume knob (with 500K EVH Bourns low-friction potentiometer)
- Mini two-way toggle switch for parallel and series pickup combinations
- Gotoh Custom 510 recessed tremolo bridge
- Charvel-branded die-cast locking tuners
Specs
Type | Solid Body |
Colour | Black |
Orientation | Right Handed |
Number of Strings | 6 |
Body Shape | Dinky |
Body Material | Alder |
Body Finish | Gloss |
Neck Material | Caramelized Maple |
Neck Shape | Speed Neck with Rolled Fingerboard Edges |
Neck Finish | Hand-Rubbed Urethane |
Fretboard Material | Ebony |
Number of Frets | 24 |
Fretboard Inlays | 4mm Pearloid Dots with Luminlay Side Dots |
Fret Size | Jumbo |
Fretboard Radius | 12 to 16 Compound Radius (304.8 mm to 406.4 mm) |
Nut Material | Graph Tech TUSQ XL |
Nut Width | 1.6875 (42.86 mm) |
Neck Pickups | Seymour Duncan Alnico II Pro APH-1N |
Bridge Pickups | Seymour Duncan Full Shred TB-10 |
Controls | 1 X Volume (500K EVH Bourns Low Friction Pot), 1 X No-Load Tone, 5-Position Pickup Selector,2-Position Mini Toggle Switch (Down/All Series, Up/All Parallel) |
Bridge | Gotoh Custom 510 Tremolo |

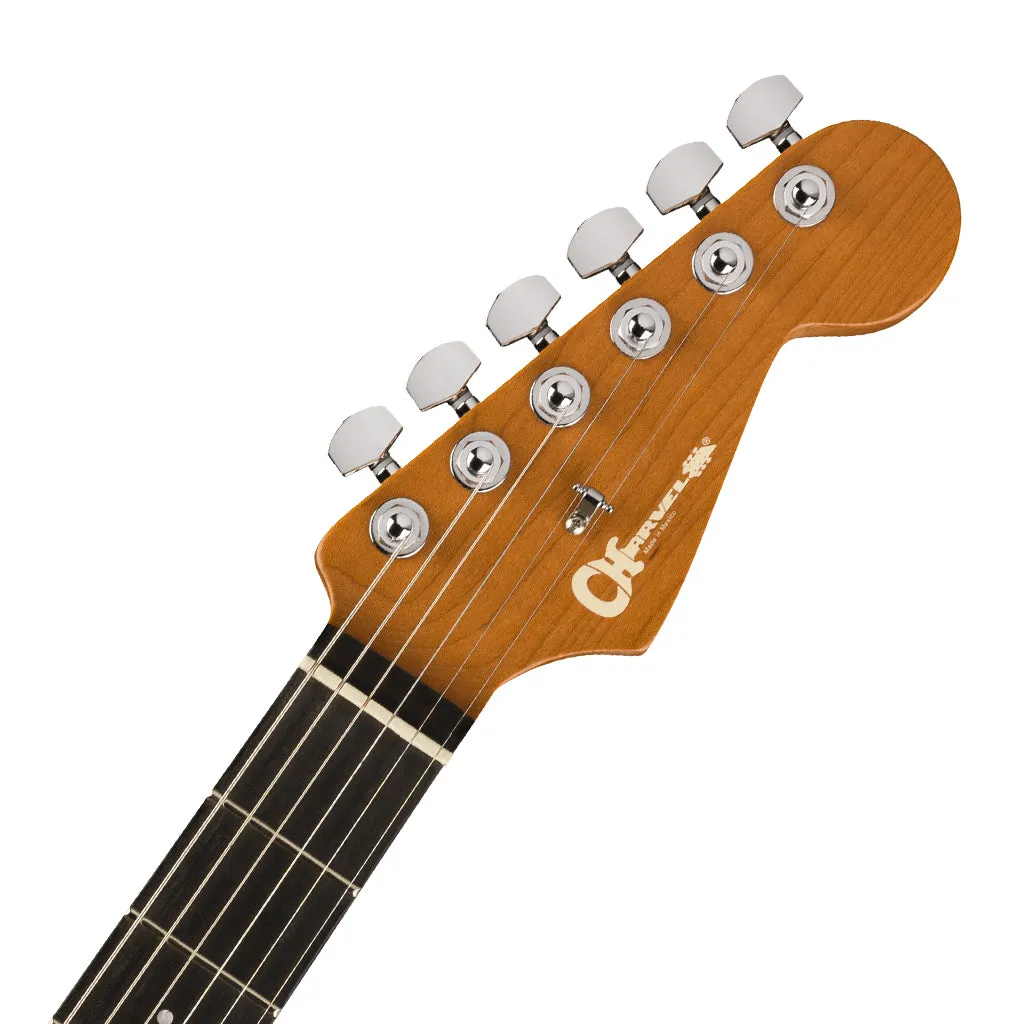

Tuners | Charvel-Branded Die-Cast Locking |
Strings | Nickel Plated Steel (.009-.042 Gauges) |
